Featured Products >> A-STD Series

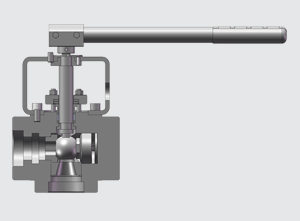

A-STD Series

Applications: Isolation for Angle Connection

Temperature and Pressure Class: ANSI 1500 3100 4500 Limited Class

Size: 3/4"– 4"

Design feature:

Angle Connection Body is Stand and integral style, Standard forged material is A182 A105 F22 F91, F92 is option.
        Ball and Seat are patented Square Bore
        Ball and Seat are mate-lapped by hand to 100% sealing contact
        Open/Close is double indicating
        Double anti-blow-out of stem
        Connection is Socked Weld or Butt Weld
        Hand lever is Ergonomics

Field:

Power Plant
        Nuclear Plant
        Process Boiler system

Flow Medium:

Water
        High temperature Steam
        High temperature oil
        Gas
        Slurry
